CANADIAN FIREPLACE MANUFACTURER RECEIVES ZERO CLEARANCE CERTIFICATION

Kamloops, BC – Firecast Fireplaces have achieved UL and ULC certifications for zero clearance of its full repair fireplace system; an innovative product for heritage home fireplace restoration safeguarding authenticity, safety, efficiency and heat.  Now owners of heritage era home fireplaces have more choice.

The benefits of the Firecast system are threefold.  First, the Firecast insert can replace historical fireplace fireboxes without compromising traditional aesthetics while ensuring the highest safety standards.  Firecast’s zero clearance accommodates the traditional wood framing against firebox and chimney found in the construction of most heritage homes.   Until recently, the only remedy was to install a gas unit or steel airtight wood burning insert into an old fireplace and chimney.  Second, the Firecast system’s zero clearance means that fireplaces and chimneys are safe and code compliant.  The certification of Firecast’s high-temperature, refractory fireplace insert means that an open wood burning fireplace can be retrofit into an existing masonry fireplace and chimney which make it not only safe but also protects the historical aesthetics of the homes’ fireplace.  And third, Firecast fireplaces deliver cost-effective, clean burning heat.

Firecast Fireplaces’ fire box and optional stainless-steel smoke chamber is installed into the existing brick firebox and smoke chamber, coupled with a liner system tested to zero clearance.  Max Kirton, Firecast Fireplaces president says, “Upon the completion of installation the owner is left with a brand-new fireplace insert maintaining the traditional appearance, ambiance and function of a wood burning fireplace and all the merits of safety and efficiency of the Firecast system”.

Firecast Fireplaces, manufactured in Vancouver, BC since 1981, are made of high-temperature, refractory materials.  The Firecast system provides the most effective insert to maintain the traditional integrity, look and character of a home’s fireplace while providing a cost-effective, clean burning, safe heat source.   The Firecast system increases the efficiency and enjoyment of conventional wood burning fireplaces with more heat, less fuel, and less smoke.

For more information:

Max Kirton – President, Firecast Fireplaces

Email. FirecastFireplaces@gmail.com

Phone. 250-574-2980

Web.  www.firecastfireplaces.com

RESTORE - UPDATE - MODERNIZE

Transforming an old brick firebox with a Firecast for a fraction of the cost of new masonry... and in only a few hours.  And without the mess.

Firecast Backbrick

Firecast Backbrick



This is the back brick of the Masonry System being installed into a dated masonry chimney. The fire brick, firebox and smoke chamber were removed as was the facing to accommodate the Firecast System.  Installing the Masonry System allowed for the installation of an 8" Stainless flue to address the cracked flue liners.

Wood Floor Model - Placing Back Brick

This is a shot of the Back Brick being placed into the Metal Shroud.

SuperstokerOnWood

SuperstokerOnWood



Lift the back brick into the shroud and pull forward to the inner metal edge of the shroud.  Tape the gap between the metal edge and the edge of the back brick.  The tape is removed after the Insulcast has been installed.



Damper

Damper fits smoke chamber

Screen Shot 2014-03-06 at 6.55.43 PM.png


Photo shows the steel damper that is used with the Firecast.  The actual exit size is only 40 square inches.  This reduced damper size allows for the installation of an 8" Round Stainless Flue.  With regards to restoration situations, the ability to install a Class A Flue or a Rigid/flex flue liner to the Firecast is a real advantage.  With upper chimney damage, the damaged or non code complying masonry chimney can be simply removed and an updated Class A Stainless can be installed.

Shroud Cap

Wood Floor Model Shroud Cap fits 8 Inch flue

Screen Shot 2014-03-06 at 1.57.23 PM.png


The shroud cap is fitted to the top of the shroud.  The collar is attached to the pipe.



A Simple Way

Before you make a decision, we'll send you a pattern to measure your firebox.

Screen Shot 2014-03-06 at 1.55.39 PM.png


Note the Firecast Insert template being used to "confirm fit" of the pending install. In some cases the "back brick" may have to be shortened.

The Easy Upgrade

An easy Firecast upgrade inserted into a damaged masonry firebox.

Screen Shot 2014-03-06 at 1.54.05 PM.png


Installation of the Flairs.  The insulation material has been poured behind the Back Brick. The Hearth Brick is placed onto the floor, last.  Flares are filled prior to installing the insulation in the rear of the back brick.

Full Repair System with Flex Pipe

The Superstoker is our full repair system, which can be fitted with stainless flex pipe.



Stainless 8" Flex or rigid stainless make for an easy update to damaged or non code complying chimney.  The use of a top mounted damper is recommended in this installation with a flue height exceeding 30 feet.  The round flue can be reduced to 7" round.

Fireplace Anyplace

If you don't have room inside, there is always outside with a Firecast...

Outside

Outside

Inside looking out

Inside looking out

This photo shows the Firecast into a wooden chase.  The Cast Brick, Smoke Chamber and Hearth, allows for an easy installation of all the difficult steps in building a masonry fireplace.  Masons, not versed in fireplace construction can now have a ready built kit.  An 8" stainless insulated flue liner is recommended in this installation.  Easy and quick to install.

Firecast - For New Construction

mid-construction

mid-construction

This is The Superstoker installed into a masonry chimney ready for facing of stone, brick or tile.  The Firecast suits an 8 inch stainless flue or traditional masonry flue liners.





Fastening the Castface

Fastening the Castface to the Firecast unit.



This photo shows the installation of Ceramic Blanket over the Cast Smoke Chamber.  The framing has been removed that was too close to the old existing masonry smoke chamber.  2" of Ceramic Blanket equals 12" of masonry.





Full Repair

A lightweight, code complying masonry fireplace.






Old rusted heat form has been removed, ready for the Masonry System to be installed into the cavity.

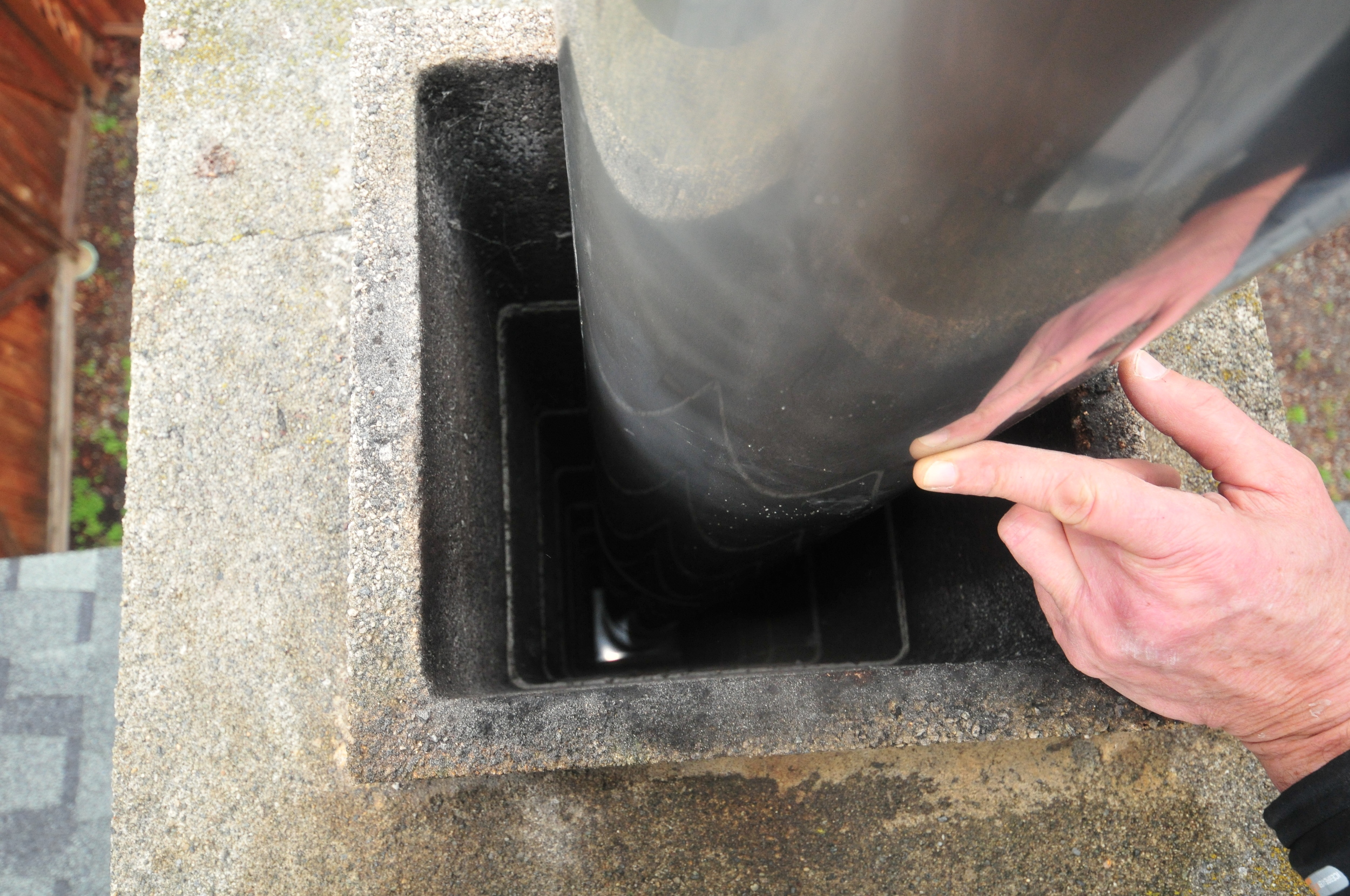

Pipe

This cavity can be filled, but the top 6" must be filled with a Cerwood gasket to allow for expansion.



 This area can also be filled as an option with a mix of Perlite and Portland Cement.  This would act as an insulator and as well stabilze the flue.   A Pipe cap is installed at the top of the masonry with a Pipe Collar.
